Power Temp Systems (PTS) is a leading US engineering and manufacturer of temporary and permanent power systems delivering customers innovative power distribution solutions increasing their operational efficiency.

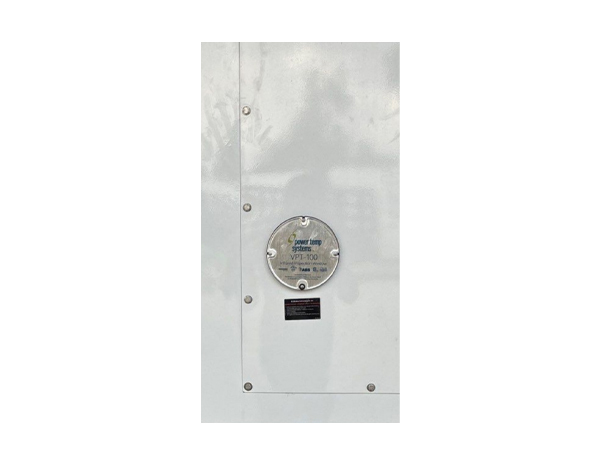

The polymer-based infrared window maintains fixed and stable transmission (FAST) for life as the polymer is unaffected by environmental and mechanical stresses commonly seen with crystal based infrared windows.
The VPT Series was successfully tested to the IEC 62271-200 standard for arc containment on metal enclosed switchgear assemblies.
Having passed rigorous standards and testing, our inspection windows are UL Listed (E491496). This demonstrates our dedication to continued safety and security in the ever-changing world of electrical power and distribution.
PTS-NFPA-70B-Flyer_V2 | 10/2024 | Download |
Model | VPT-50 | VPT-75 | VPT-100 |
---|---|---|---|
General Specifications | |||
Overall Dimensions | 9.1 cm (3.6 in) Ø | 12.1 cm (4.8 in) Ø | 15.1 cm (5.95 in) Ø |
Overall Thickness | 2.6 cm (1.0 in) | 2.6 cm (1.0 in) | 2.6 cm (1.0 in) |
IP / NEMA Environment Rating | IP67 / NEMA 6 | ||
Operating Temperature | -40°C (-40°F) to 273°C (523°F) | ||
Body Material | UL 94 5VA Nylon (switchgear-grade plastic); -40°C (-40°F) to 273°C (523°F); aluminum cover | ||
Gasket Material | UL 94 5VA TPE; -40°C (-40°F) to 273°C (523°F) | ||
Hardware Material | 316 Stainless Steel | ||
Voltage Range | Any | ||
Automatically Grounded | Yes | ||
Optic Specifications | |||
Viewing Aperture Dimensions | 5.1 cm (2.0 in) Ø | 7.6 cm (3.0 in) Ø | 10.2 cm (4.0 in) Ø |
Optic Material | Poly-View™ UL 746 compliant, visual, UV and IR transmissive polymer; -40°C (-40°F) to 325°C (617°F) | ||
Optic Reinforcing Grill Material | Aluminum Reinforcing Grill (IP22 / IP2X Standard) | ||
Inspection Capabilities and Applications | |||
Midwave IR and Longwave IR; Ultraviolet (UV); Visual Inspection; Medium/High Voltage Applications | |||
Certifications | |||
UL Listed (E491496) | |||
Certified by UL (USA) & cUL (Canada) to the following standards: 50V, 50E, 756C: Impact and Flammability, 746C & 746A-2012, 1558: Impact and Load Resistance, 508A: ANSI 508A | |||
CSA C22.2 No. 14-13, C22.2 No. 14-10, C22.2 No. 94-M91, C22.2 No.94.1-07, C22.2 No. 94.2-07 | |||
Lloyds of London Type Approval | |||
American Bureau of Shipping (ABS) | |||
DNV (Det Norske Veritas) P261.1E Maritime, Vessel and Offshore Applications | |||
IEEE C37.20.7 Type 2B, C37.20.2 3.6: Impact and Load | |||
IEC 62271-200, 602662271-200,60298 Appendix A, 60068-2-6:2007, 60068-2-3, 60068-2-78:2012 |
